Surface Grinding Machine Accessories Precision Punch Former

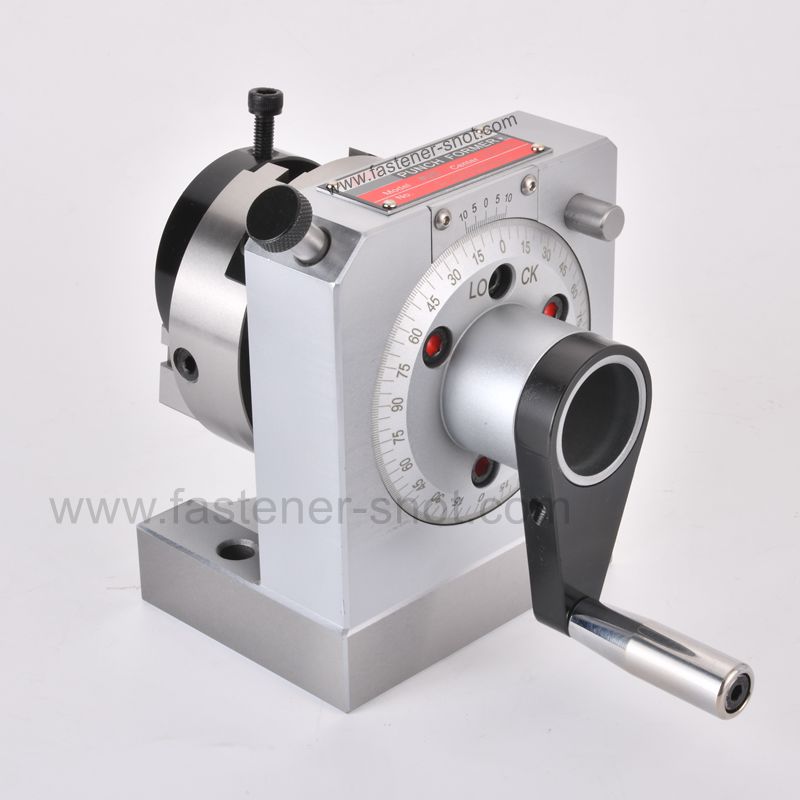

    Product name:Surface Grinding Machine Accessories Precision Punch Former
    Brand name:SNOT
    Place of Origin:Guanddong province,China
    Packing:In standard exported packing,or according to customers' requirement
    Payment:T/T, Western Union,Paypal


PSB punch former except to has PSA characteristics,especially with a central through hole,Excessively long punches and shoot tips can be extended to be clamped and processed.

Because the design of  through-hole cannot move left and right, so the PSB1 accessory is specially designed to be used in conjunction to achieve the function of dressing the angle of the grinding wheel

Main parameters

1. Center height: 80-81mm

2. V-groove clamping diameter: Φ4-30mm

3. V-block adjustment amount: 25mm

4. Number of indexing disc teeth, accuracy: 24, 15° ±5''

5. Maximum diameter of dressing wheel: Φ200mm

6. Net weight:8.5kg

7. Maximum radius of dressing wheel arc:

    Convex arc: R48mm

    Concave arc: R100mm

drawing for punch former.png
